◆ Model:

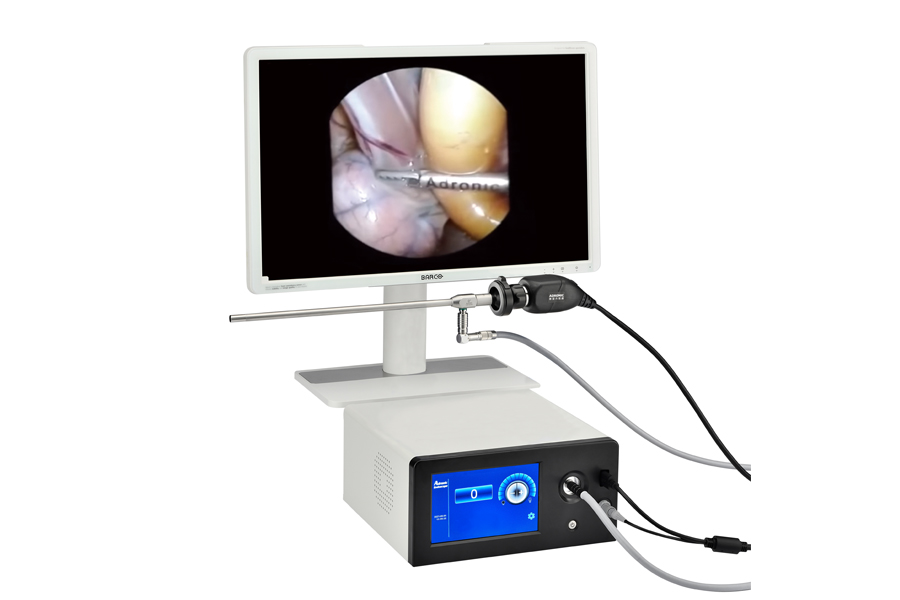

Medical 2 in 1 Light Source Endoscope Station

Clinical Imaging System Working Station
◆ Two-in-one optical lighting and imaging system.
◆ No CCU machine required. Compactness, lightweight, take up less space.
◆ Independent optical White LED contains 2000 lumens.
◆ Effectively adjust to different level of light intensity.
◆ High image quality, resolution.
◆ Endoscope can be steam sterilized



Medical Endoscope
DOV : 0°/30°/70°

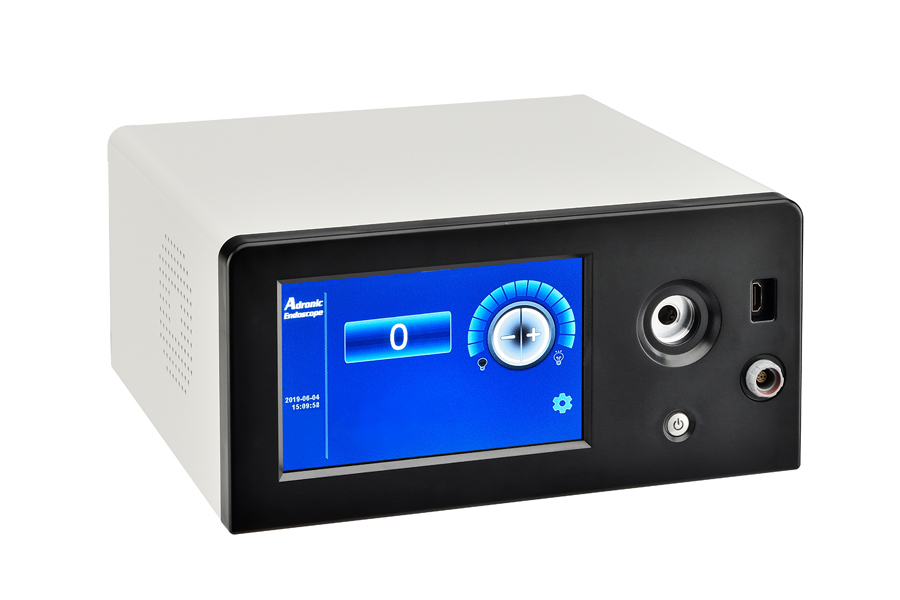

Light source
Touch Panel

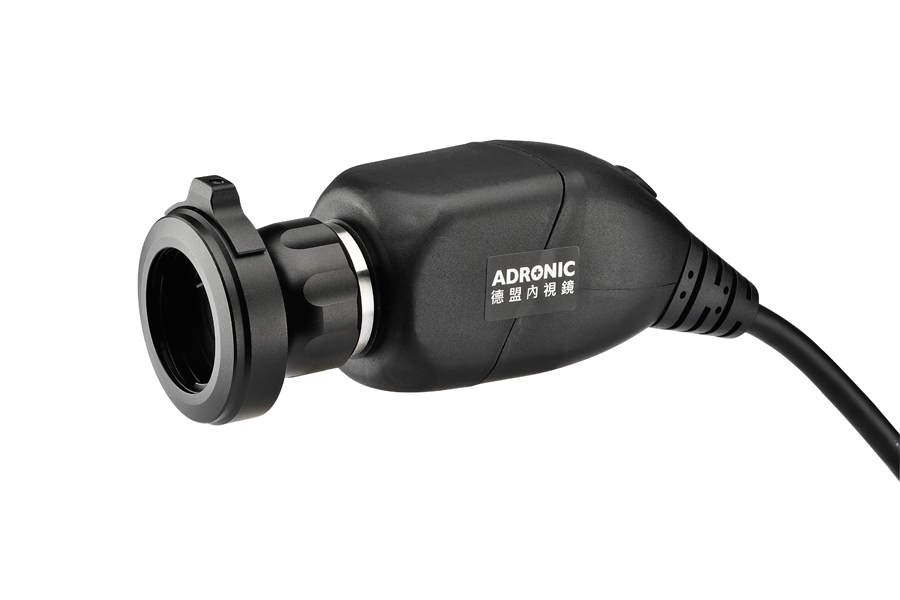

CCD Camera-2K
Suitable for different brands of endoscopes

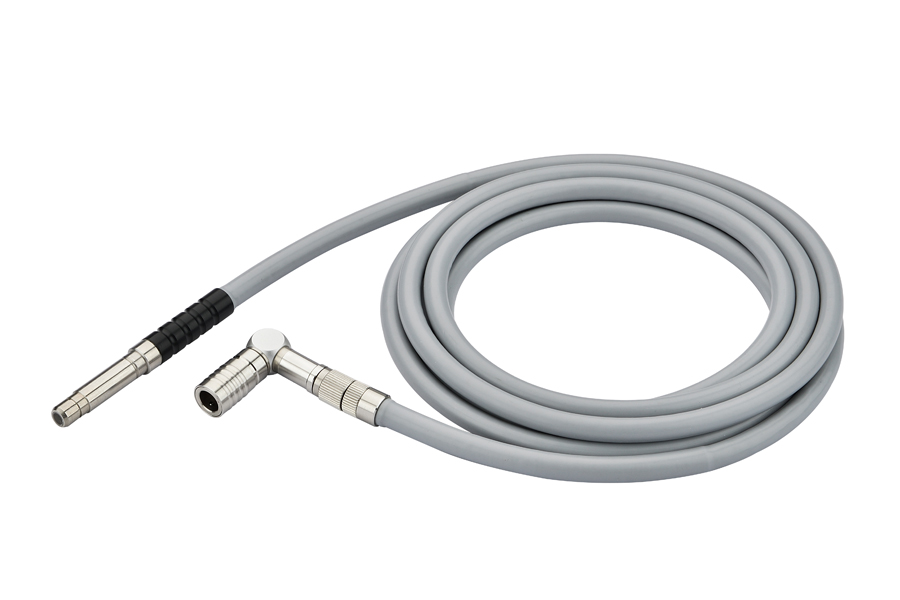

Light Guide Cable ( autoclaving)

Model		Medical 2 in 1 Light Source and Image System
Medical 2 in 1 Light Source Endoscope Station
Endoscope	Outer Diameter	4.0mm / 5.0mm / 10.0mm
	DOV	0° / 30° / 70°
	FOV	90°
	Working Length	175mm / 180mm / 300mm
	Tube	Medical Stainless Tube
	Resolution	2K (2048×1080)
CCD camera
	Focus / White balance	Manual
Light source	Voltage	100~240V
	Frequency	50/60 Hz
	Consumption electric power	500VA
	Dimensions ( W x H x D )
		381 x 293 x 151mm
	Source	High-intensity white LED light
	Life time	> 30,000 hr
	Brightness method	7" touch panel
Monitor	Medical LCD	Barco 27" 4K UHD medical Surgery screen
	Medical level
Light guide cable		Autoclaved
