    • Product description

    For A Better Inspection Scope

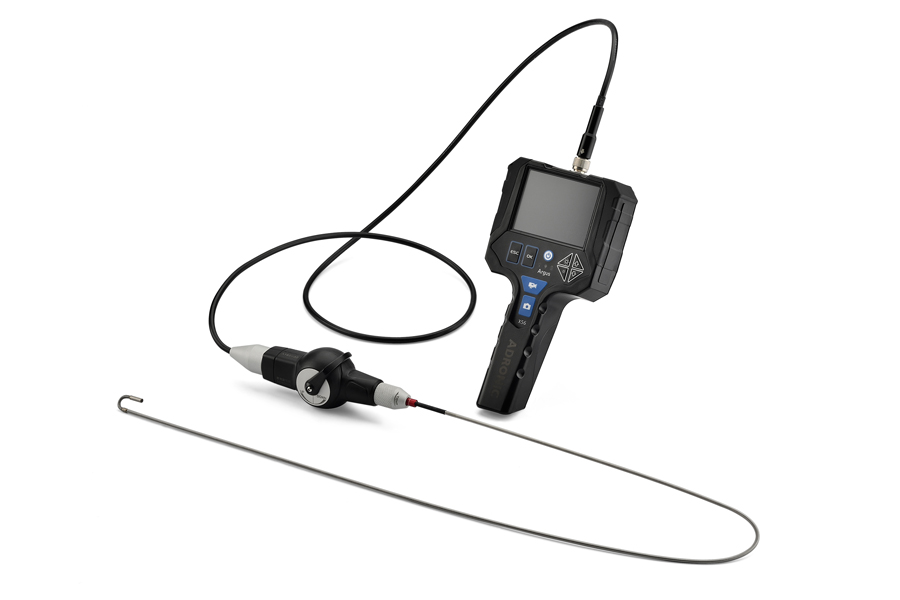

    4 way Articulation Industrial Endoscope

    Model: AT280、AT390、 AT550、AT600、AT800

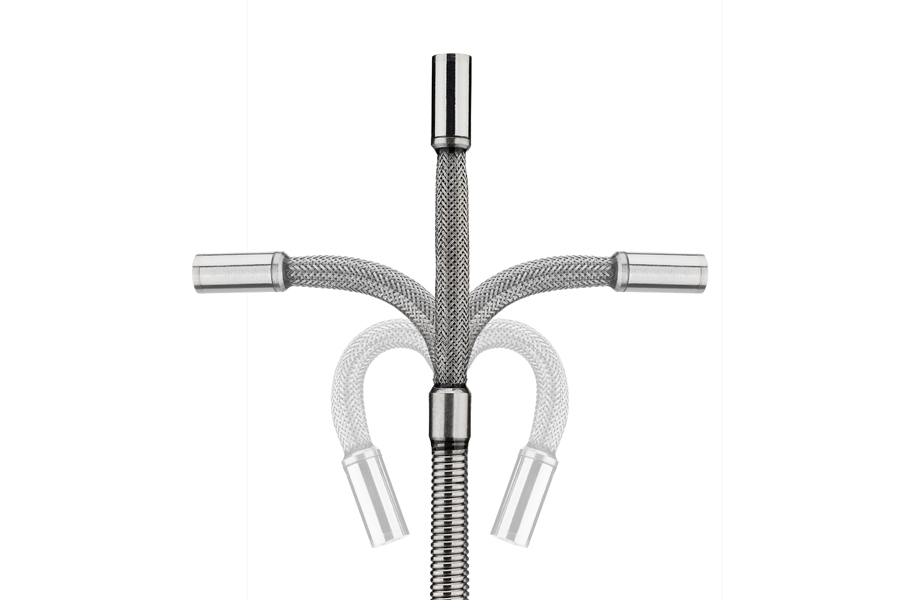

    ◎  Gooseneck bending angel up to 220 degree for each way
    ◎  Mirror, Contrast, Brightness adjustments
    ◎  Easy to carry and use for 3.5”Video Scope
    ◎  Working Length : 1-10M

    Specifications Model OD DOF Resolution FOV
    2 way Articulation
    Endoscope     		 AT 280 2.8mm 10~50mm 160,000 90°
    AT 390 3.9mm 10~50mm 400,000 90°
    AT 550 5.5mm 20~70mm 450,000 67°
    AT 600 6.0mm 20~70mm 450,000 67°
    AT 800 8.0mm 20~70mm 450,000 90°
    Probe Material Flexible / Metal-Flexible / Metal-Braided / Semi-rigid
    Operation Direction 2 way
    Gooseneck rotation angle 220°
    Working Length 1-10M
    Focus/White Balance Auto
    Monitor 3.5"(640*480  pixels) Handheld push-button operation screen
    AC adapter 100~240V
    Power Supply Rechargeable lithium battery 5000mAh; Operating time : 4 hours
    Signal Output USB、AV
    Working Temperature -20°~60°
    Anti-drop Anti-drop design
    Design Dustproof and waterproof
    Storage Memory 16GB SD Card
    Image 640 x 480.JPEG
    Video 640 x 480.AVI
    Language Chinese, English, Japanese, German, French, Spanish, Russian, etc.

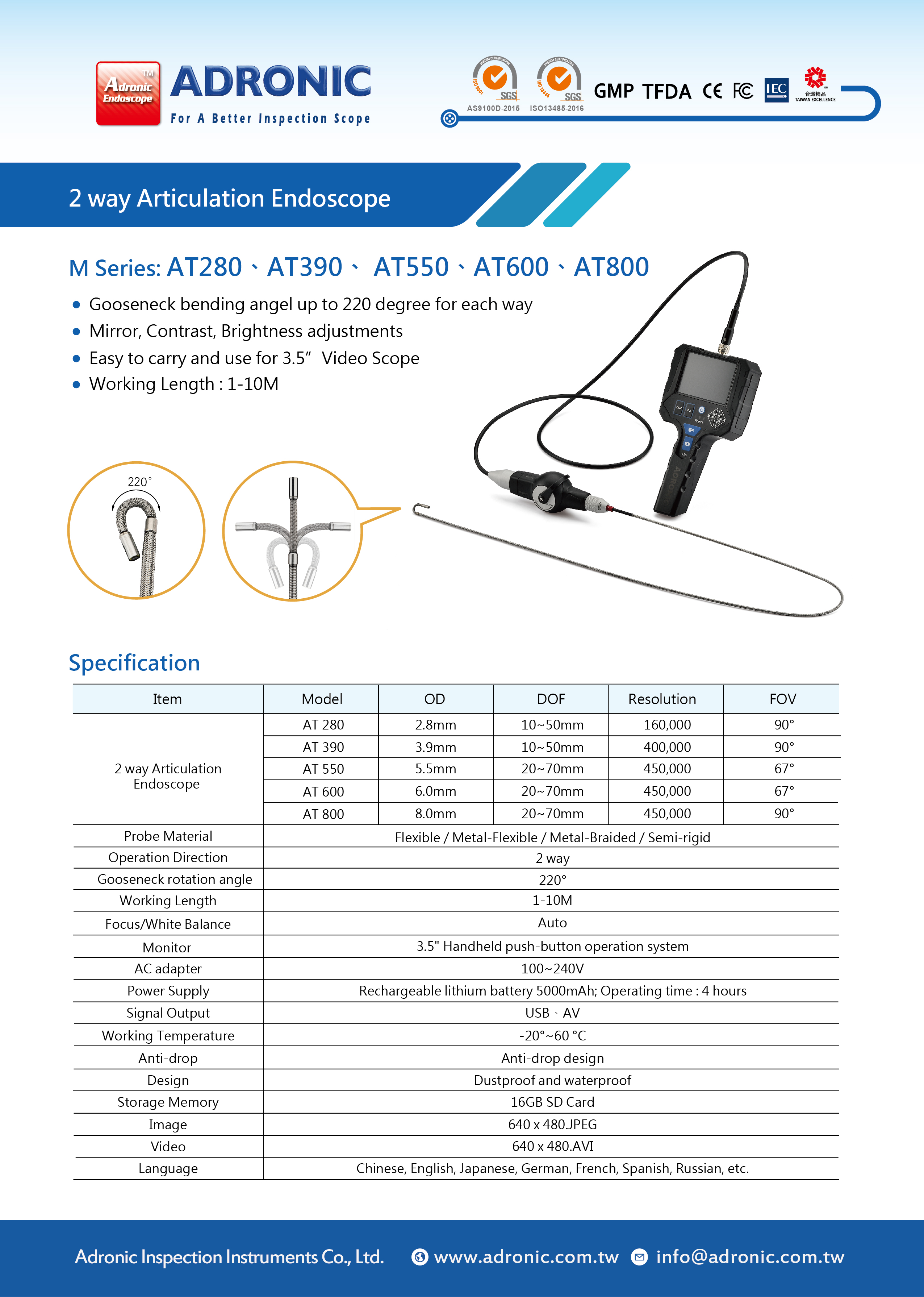

    2 way Articulation Endoscope (AT-Series)
