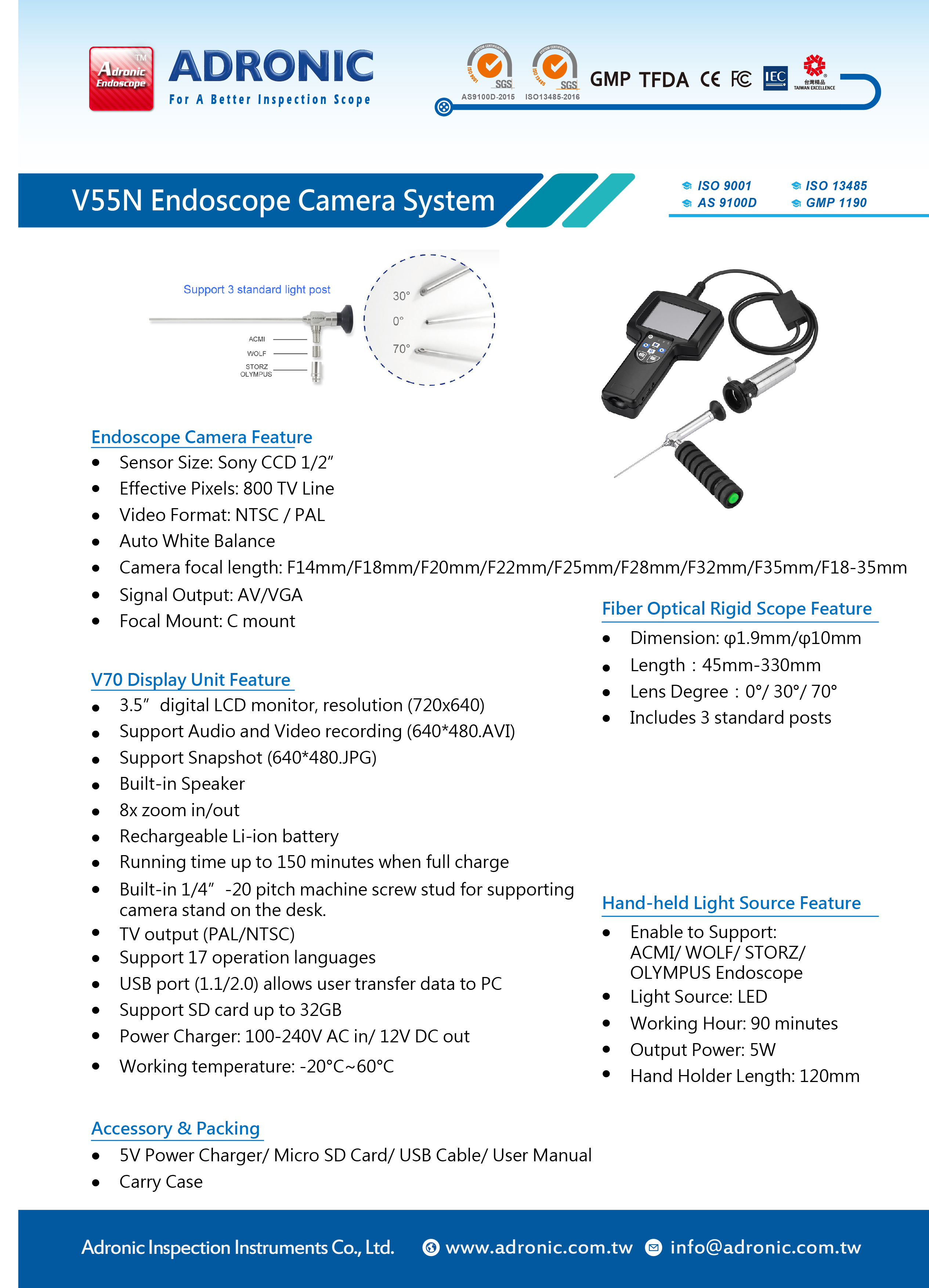

Model:V55N Endoscope System

Endoscope Camera Feature
◎ Sensor Size: Sony CCD 1/2”
◎ Effective Pixels: 800 TV Line
◎ Video Format: NTSC / PAL
◎ Auto White Balance
◎ Camera focal length：14mm-35mm/Zoom 15-25mm
◎ Signal Output: AV/VGA
◎ Focal Mount: C-Mount

Display Unit Feature
◎ 3.5”digital LCD monitor, resolution (720x640)
◎ Support Audio and Video recording (640*480.AVI)
◎ Support Snapshot (640*480.JPG)
◎ Built-in Speaker
◎ 8x zoom in/out
◎ Rechargeable Li-ion battery
◎ Running time up to 150 minutes when full charge
◎ Built-in 1/4”-20 pitch machine screw stud for supporting camera stand on the desk.
◎ TV output (PAL/NTSC)
◎ Support 17 operation languages
◎ USB port (1.1/2.0) allows user transfer data to PC
◎ Support SD card up to 32GB
◎ USB port (1.1/2.0) allows user transfer data to PC
◎ Support SD card up to 32GB
◎ Power Charger: 100-240V AC in/ 12V DC out
◎ Working temperature: 0°C~40°C

Fiber Optical Rigid Scope Feature
◎ Outside Diameter：φ1.9mm-φ10mm
◎ Director of View：0°/ 30°/ 70°
◎ Working Length：45mm-330mm
◎ Includes 3 standard posts

Hand-held Light Source Feature
◎ Enable to Support：ACMI/ WOLF/ STORZ/ OLYMPUS Endoscope
◎ Light Source：LED
◎ Working Hour：90 minute
◎ Output Power：5W
◎ Hand Holder Length：120mm

ITEM	SPECIFICATIONS
Camera Effective Pixels	1028 x 1024 pixels
Video Format	NTSC / PAL
Focal Mount	C-Mount
Bit depths	Auto White Balance
Sensor Size	800 TV Line
Output Power	5W
Light Source	LED
Camera lens	F14mm/F18mm/F20mm/F22mm/ F25mm/F28mm/F32mm/F35mm
Enable Sensor Size	Sony CCD 1/2”
Supports zoom-in/zoom-out	F18-35mm
Size	φ50 x L42mm

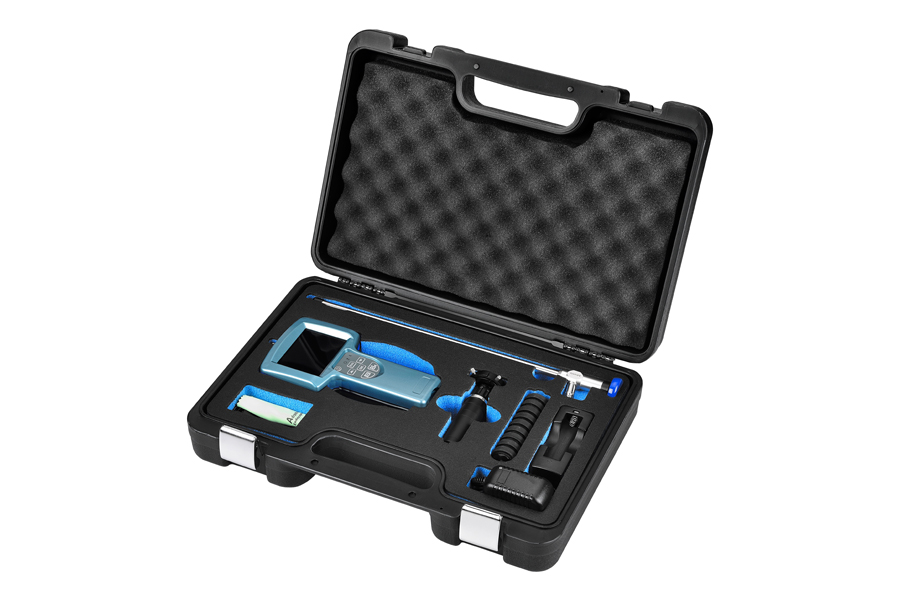

Accessory & Packing
5V Power Charger/ Micro SD Card/ USB Cable/ User Manual/ Carry Case/Q-tip/Cleaning cloth
